iFlight Borg H7 Flight Controller
₪300

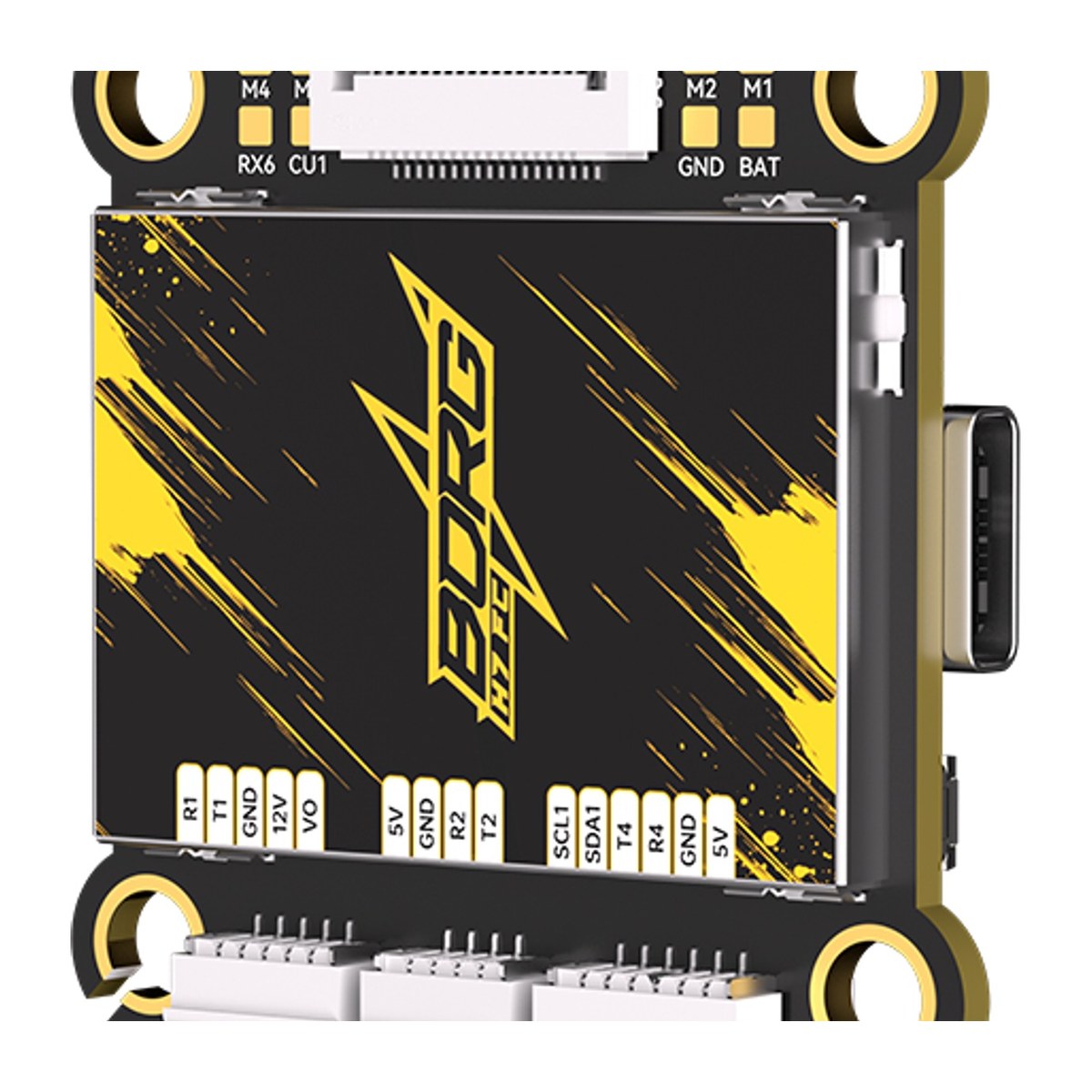

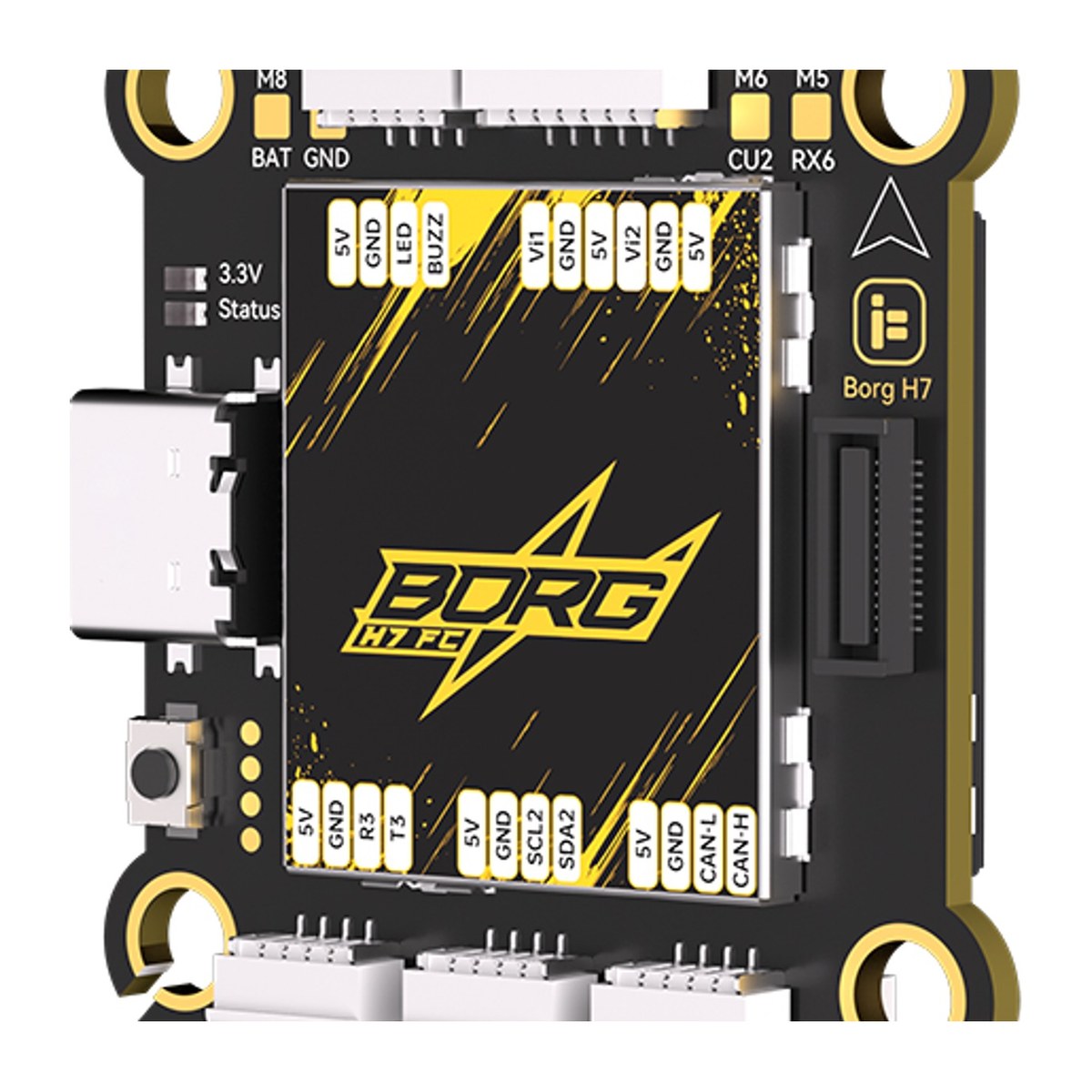

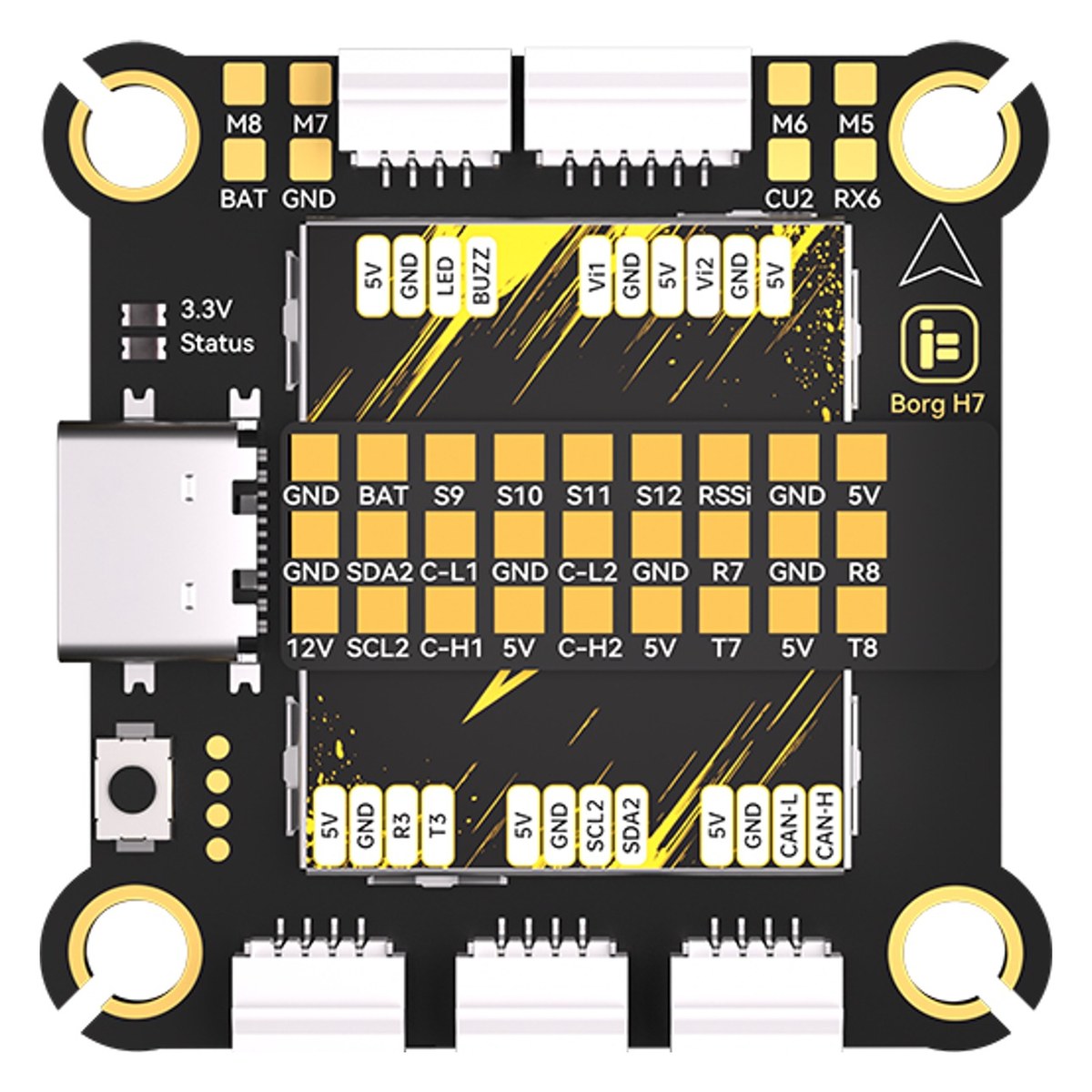

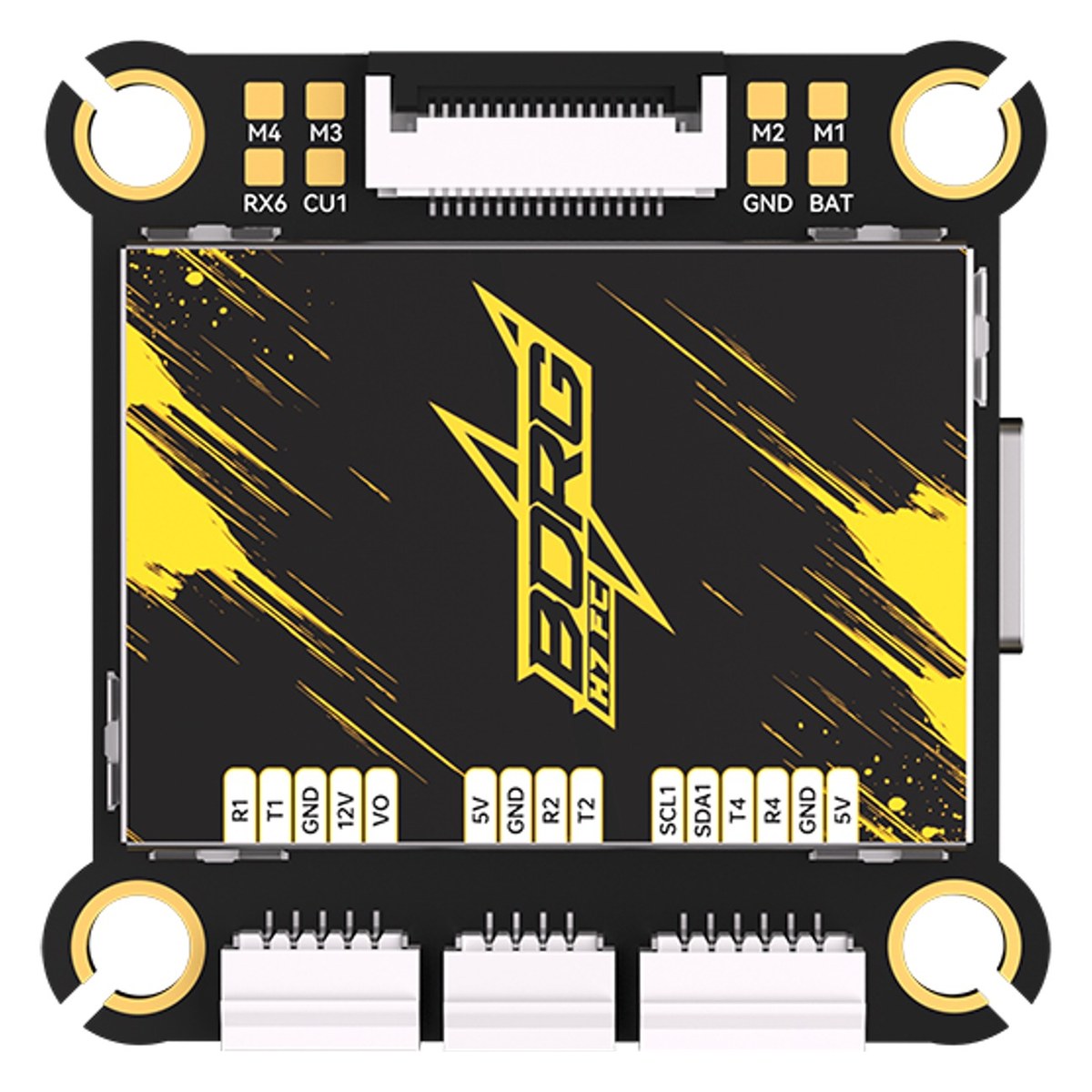

iFlight Borg H7 flight controller for 5 to 10 inch FPV drones, built around the STM32H743 with dual ICM42688 gyros. It runs from 4-12S (LIHV supported), with an integrated 12V BEC that lets the radio switch the video transmitter on and off, dual camera input with switching from the radio, 8 motor outputs, 7 UARTs and 32MB of Blackbox flash. The ESC connects through an FPC cable and the other connectors are locking SH1.0. 30.5x30.5 mm mounting, 17 g.
Features
- STM32H743VIH6 MCU with dual ICM42688 gyros
- 4-12S input, LIHV supported
- 12V BEC (2A) with radio-controlled VTX switch, plus 5V (2.5A)
- Dual camera input, switchable from the radio
- FPC cable to the ESC and locking SH1.0 connectors
- 8 motor outputs, 7 UARTs, 2 I2C, 32MB Blackbox flash
- SPA06-003 barometer, AT7456E OSD; supports DJI MSP, SmartAudio, IRC Tramp and HDZero
- 30.5x30.5 mm mounting, 17 g
Specifications
Input voltage4-12S (LIHV supported)
MCUSTM32H743VIH6
GyroICM42688 x 2
BarometerSPA06-003
OSD chipAT7456E
Blackbox flash32MB
UARTs7
Motor outputs8
I2C2
VTX protocolsDJI MSP / SmartAudio / IRC Tramp / HDZero
LED controllerYes
Buzzer padYes
Betaflight targetIFLIGHT_BORG_H7
Mounting pattern30.5 x 30.5 mm, Ø4
Dimensions37.5 x 37.5 mm ±1
Weight17 g ±1
BEC5V 2.5A, 12V 2A (12V with VTX switch)
ESC connectionFPC cable
Other connectorsSH1.0, locking
Suggested UART useUART1 VTX, UART2 receiver, UART4 GPS, UART6 ESC telemetry; UART3, 7 and 8 free for GPS or other serial sensors
In the box
- 1 x Borg H7 Flight Controller
- 1 x Cable set
- 5 x silicone grommets
