HolyBro Kakute H7 V1.5 Flight Controller ICM-42688-P for FPV Drone

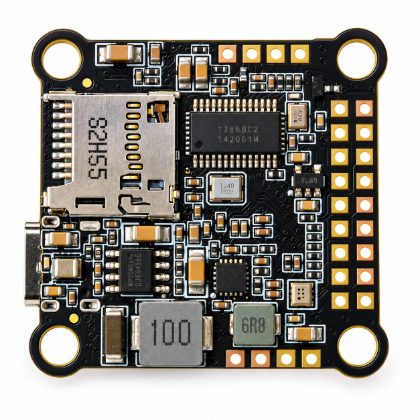

A Holybro 30.5x30.5mm flight controller on an STM32H743 at 480MHz, with the ICM-42688-P gyro of the V1.5 revision. The board carries an SPA06 barometer, an AT7456E OSD chip and a full-size MicroSD slot for blackbox logging. This is the version with the onboard ESP32-C3 Bluetooth chip, which lets you configure and tune Betaflight from your phone in the SpeedyBee app without a cable. It takes 3S to 8S directly. It has 5V 2A and 9V 3A continuous BECs, 6 UARTs and 9 PWM outputs. Its two 8-pin ESC ports let you run two 4-in-1 ESCs on an X8 octocopter. It is supported by Betaflight 4.5.2+, INAV 4.0+, ArduPilot 4.2+ and PX4 1.13+, so it also suits long-range builds with GPS and autonomous missions. Tips: UART2 is taken by the Bluetooth link, so plan your port layout around it. The 6-pin VTX port supplies 9V for HD systems such as DJI and for analog VTXs, so check that your transmitter runs on 9V.
Features
- STM32H743 at 480MHz
- ICM-42688-P gyro, SPA06 barometer
- Onboard Bluetooth (ESP32-C3) for phone tuning
- Two 8-pin ESC ports, X8 capable
- Full-size MicroSD slot for blackbox
- 3S-8S input, 5V 2A and 9V 3A BEC
- Betaflight, INAV, ArduPilot and PX4
Specifications
In the box
- 1x Kakute H7 V1.5 flight controller
- 4x M3 silicone grommets
- 2x JST-SH1.0 8-pin 150mm cable (for ESCs)
- 1x JST-SH1.0 6-pin to GHR 10-pin 80mm and 150mm cable (for DJI Air Unit)
- 1x JST-SH1.0 6-pin coloured 150mm cable (for HD systems and VTX)
