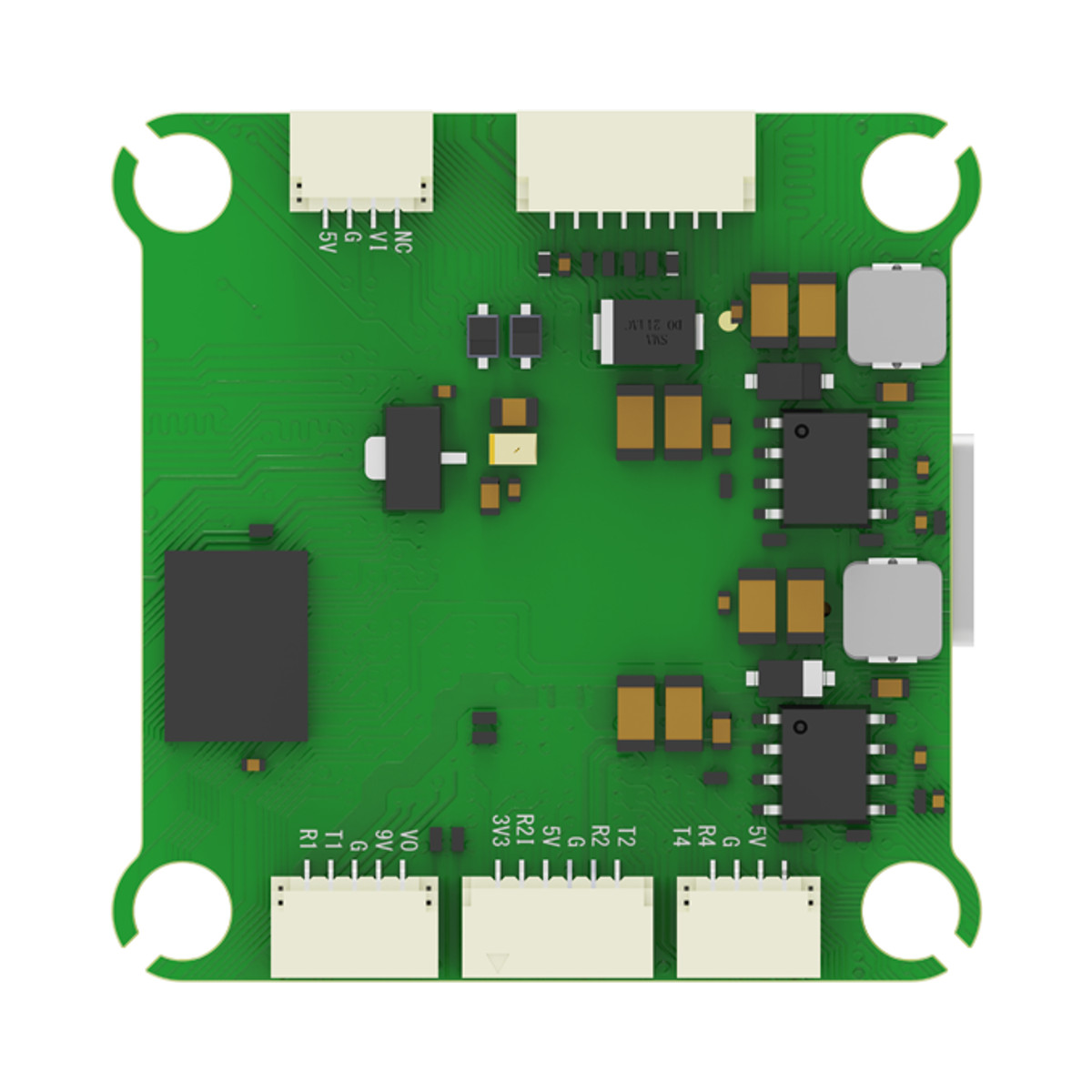

iFlight BLITZ ATF435 Flight Controller
An iFlight 30.5x30.5mm flight controller on an ArteryTek AT32F435RGT7 MCU with an ICM42688 gyro. The board carries a DPS310 barometer, an AT7456E OSD chip and 32MB of blackbox flash. It has 6 UARTs and I2C pads for a compass. The dual BEC supplies 5V 2.5A and 9V 2A. The four motor outputs come out on an SH1.0 connector for a 4-in-1 ESC, and VTX control works over SmartAudio or IRC Tramp. There is also an LED controller and a beeper pad. It is the flight controller from iFlight's BLITZ ATF435 stack. It measures 36.5x35mm and weighs 7.8g. Tips: iFlight suggest this port layout: UART1 for the VTX (HD or analog), UART2 for the receiver, UART3 to UART5 for GPS or other sensors, and UART6 for ESC telemetry. When flashing Betaflight, pick exactly the IFLIGHT_BLITZ_ATF435 target. On 6 November 2023 iFlight switched the gyro from BMI270 to ICM42688, so boards from older batches may carry a BMI270.
Features
- AT32F435 MCU
- ICM42688 gyro, DPS310 barometer
- Onboard OSD and 32MB blackbox
- 6 UARTs and I2C pads
- Dual BEC: 5V 2.5A and 9V 2A
- SmartAudio and IRC Tramp, LED controller and beeper pad
- 30.5x30.5mm, 7.8g
Specifications
In the box
- 1 x BLITZ ATF435 flight controller
- 1 x set of FC connector cables
- Silicone grommets
