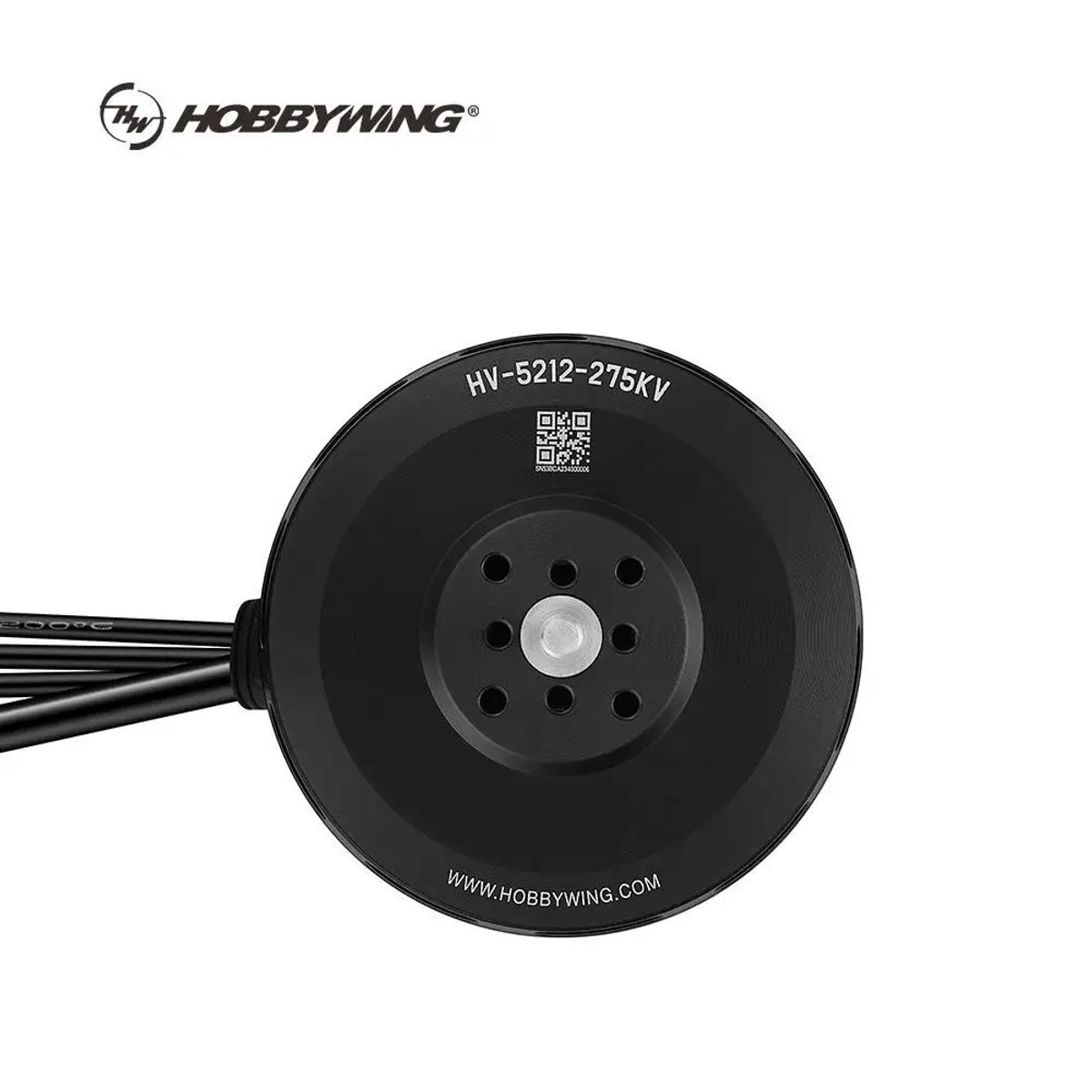

Hobbywing V5212 275KV Brushless Motor - 12S, Heavy-Lift / VTOL

Hobbywing V5212 275KV Brushless Motor - 12S, Heavy-Lift / VTOL

₪470

Hobbywing's V5212 at 275KV, from the V-series that Hobbywing builds for VTOL aircraft and heavy multirotors on 12S. It has a 52mm stator in a 24N28P layout, weighs 248g with leads, and comes with 600mm 16AWG wires. In Hobbywing's test at 46V it made 9.14kg on an MSC 17x5.8 prop at 53.6A, and about 3.7kg at only 13.4A, so hovering at 3.5-4kg per motor it runs at around 6g/W. Hobbywing recommends a 14-16kg quadcopter takeoff weight, MSC 16x5.4 or 17x5.8 props and an XRotor Pro H60A or H80A 14S ESC. The motor mounts with 4x M4 on a 25mm circle and the prop bolts straight to the bell. Large air outlets cool the windings, the bearings are waterproof and the motor is rated IPX5.

Features

  • 275KV on 12S LiPo
  • Up to 9.1kg thrust (MSC 17x5.8, 46V)
  • About 3.7kg at 13.4A - around 6g/W at hover
  • 52mm stator, 24N28P, 248g

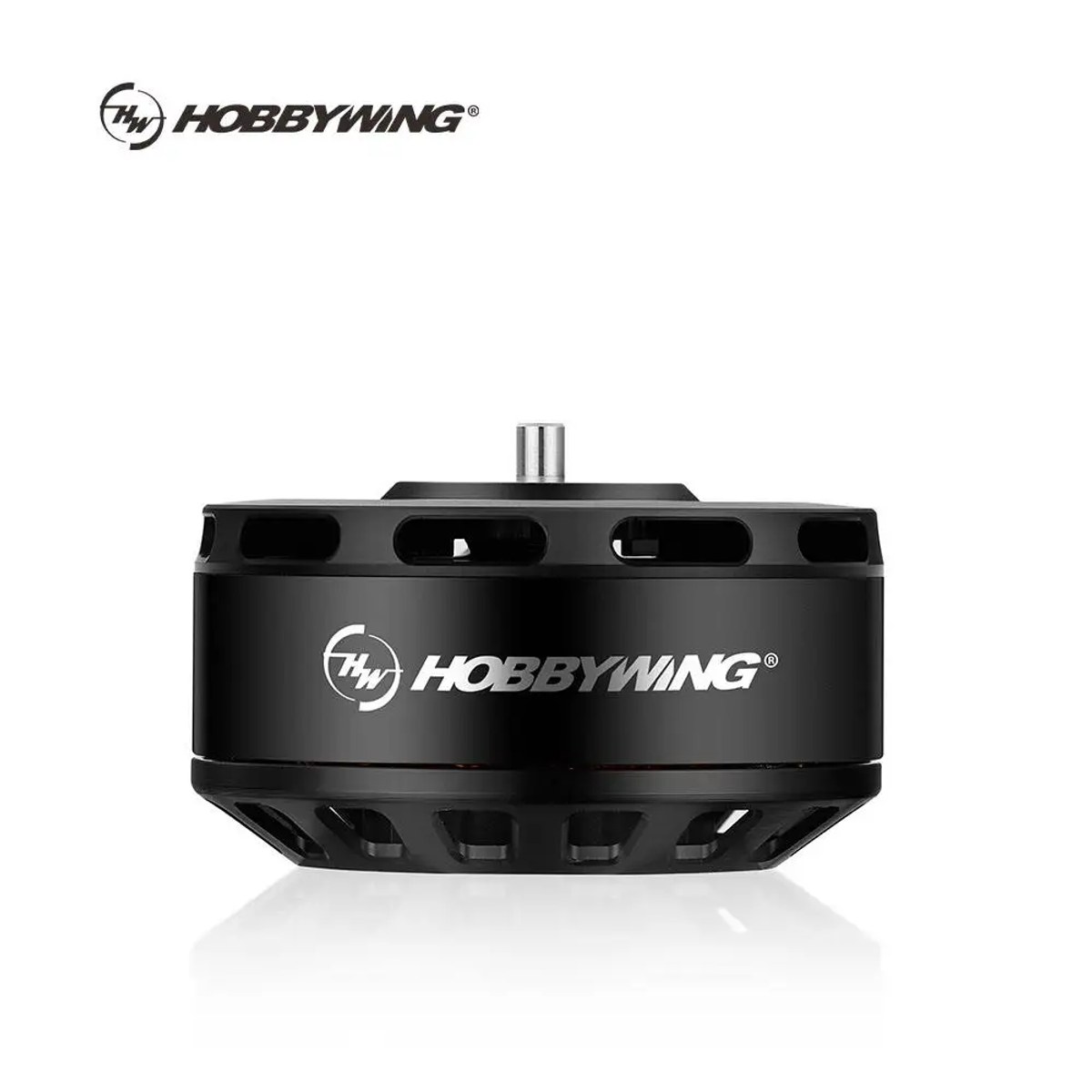

  • Centrifugal self-cooling with large air outlets
  • IPX5, waterproof bearings
  • Quadcopter MTOW 14-16kg

Specifications

ModelHobbywing V5212 275KV
KV275
Recommended battery12S LiPo (46V)
StatorΦ52mm
Configuration24N28P
Motor sizeΦ58 x 37.2mm
ShaftΦ4mm
Weight248g (with wire)
Max thrust9.1kg
Max current53A
Rated output power574W (continuous)
No-load current2.25A
Internal resistance64mΩ
Wire16AWG, 600mm
Recommended propsMSC 16x5.4 or 17x5.8
Recommended ESCXRotor Pro H60A 14S or H80A 14S IPC
Thrust per rotor3.5-4kg (hover)
Quadcopter MTOW14-16kg
Test: MSC 16x5.4, 100%7684g · 41.0A · 1889W (46V)
Test: MSC 17x5.8, 100%9140g · 53.6A · 2470W (46V)
Test: MSC 17x5.8, 60%3683g · 13.4A · 6.0g/W (46V)

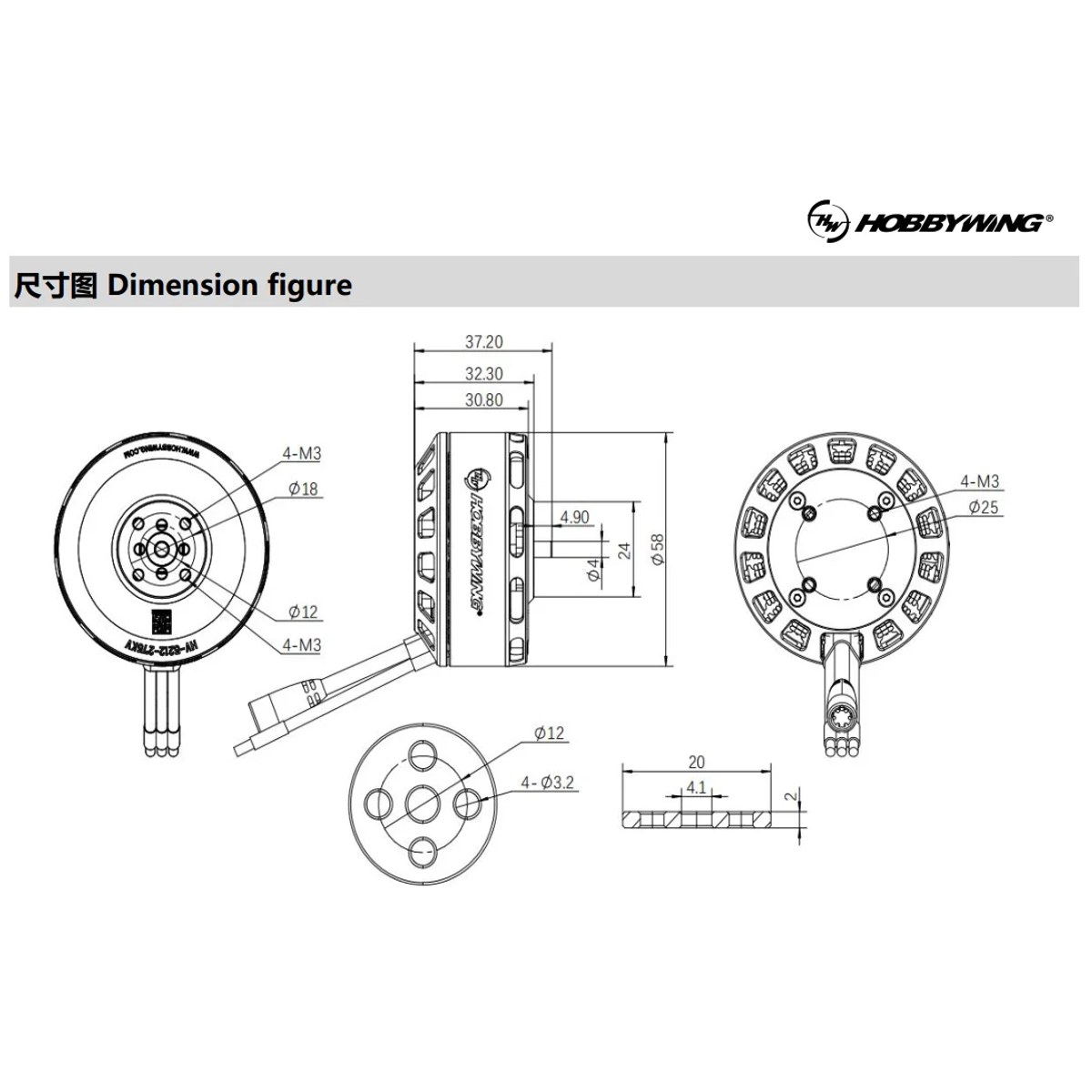

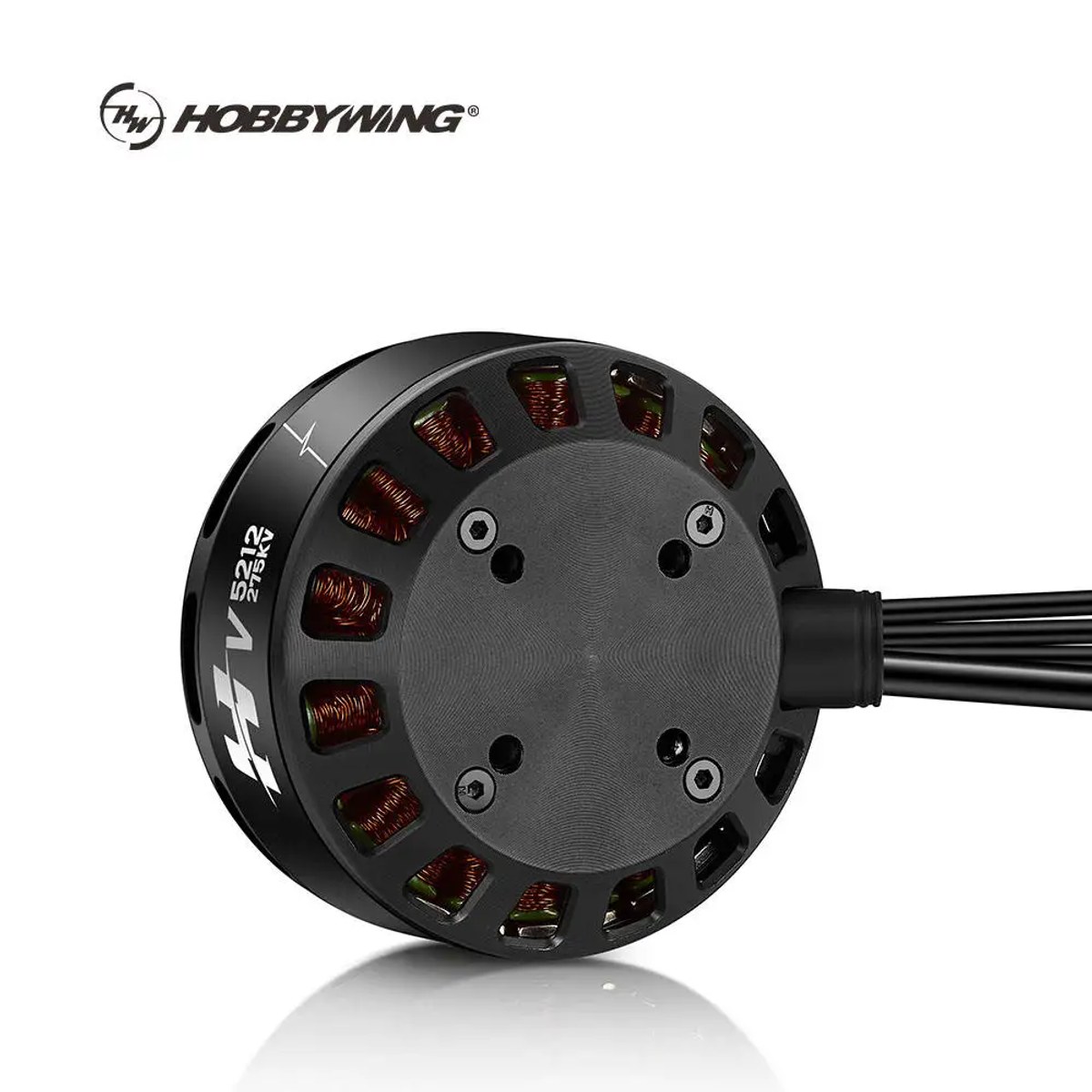

Motor mounting4 x M4 on Φ25mm

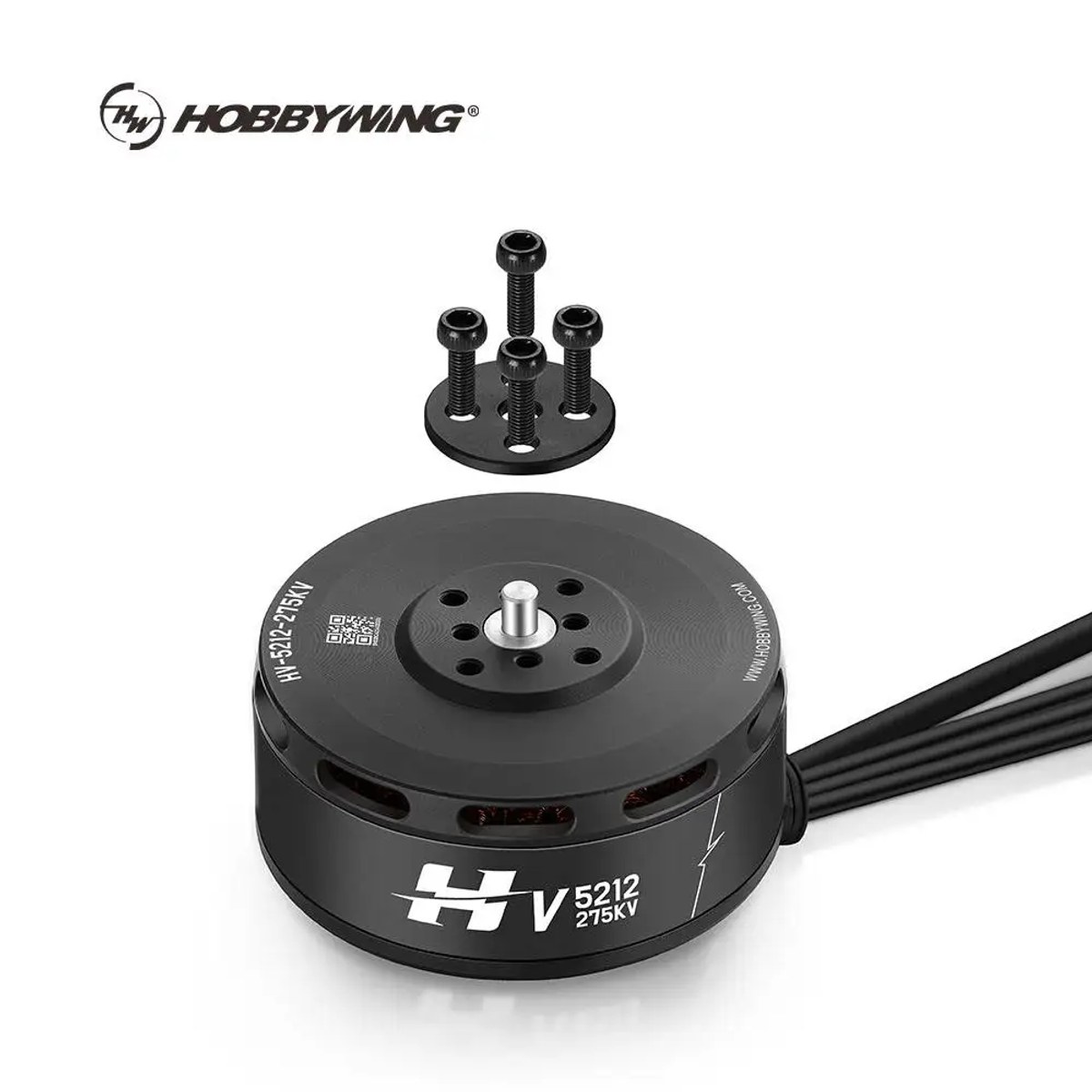

Prop mounting4 x M3 on Φ12mm, 4 x M4 on Φ18mm
ProtectionIPX5
Dynamic balance≤8mg
Insulation test500V AC
Heat ratingEnamelled wire 200°C, magnets 150°C

In the box

  • 1 x Hobbywing V5212 275KV motor
