T-Motor F90 2806.5 Long Range Brushless Motor - 1300KV
T-Motor

T-Motor F90 2806.5 Long Range Brushless Motor - 1300KV

₪140

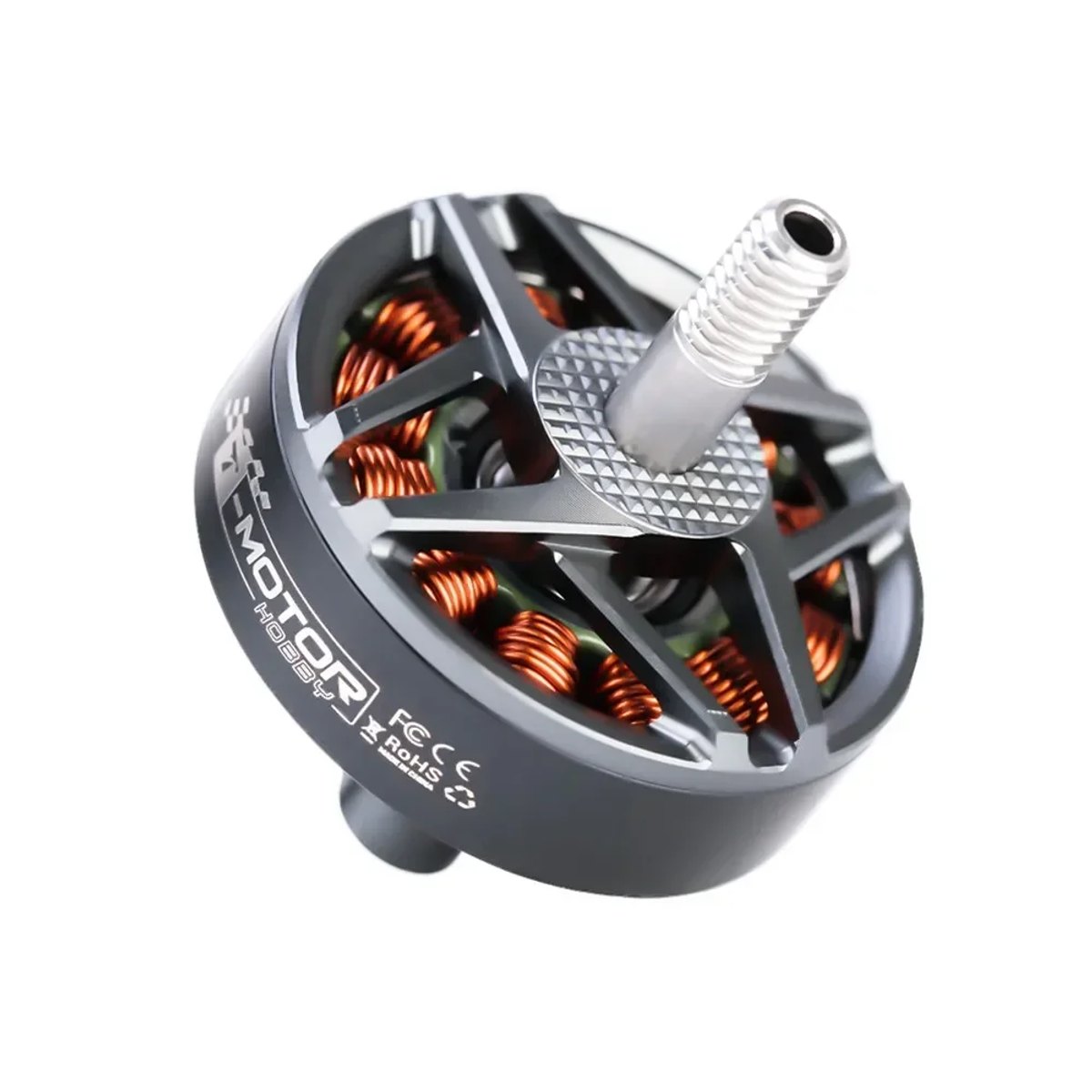

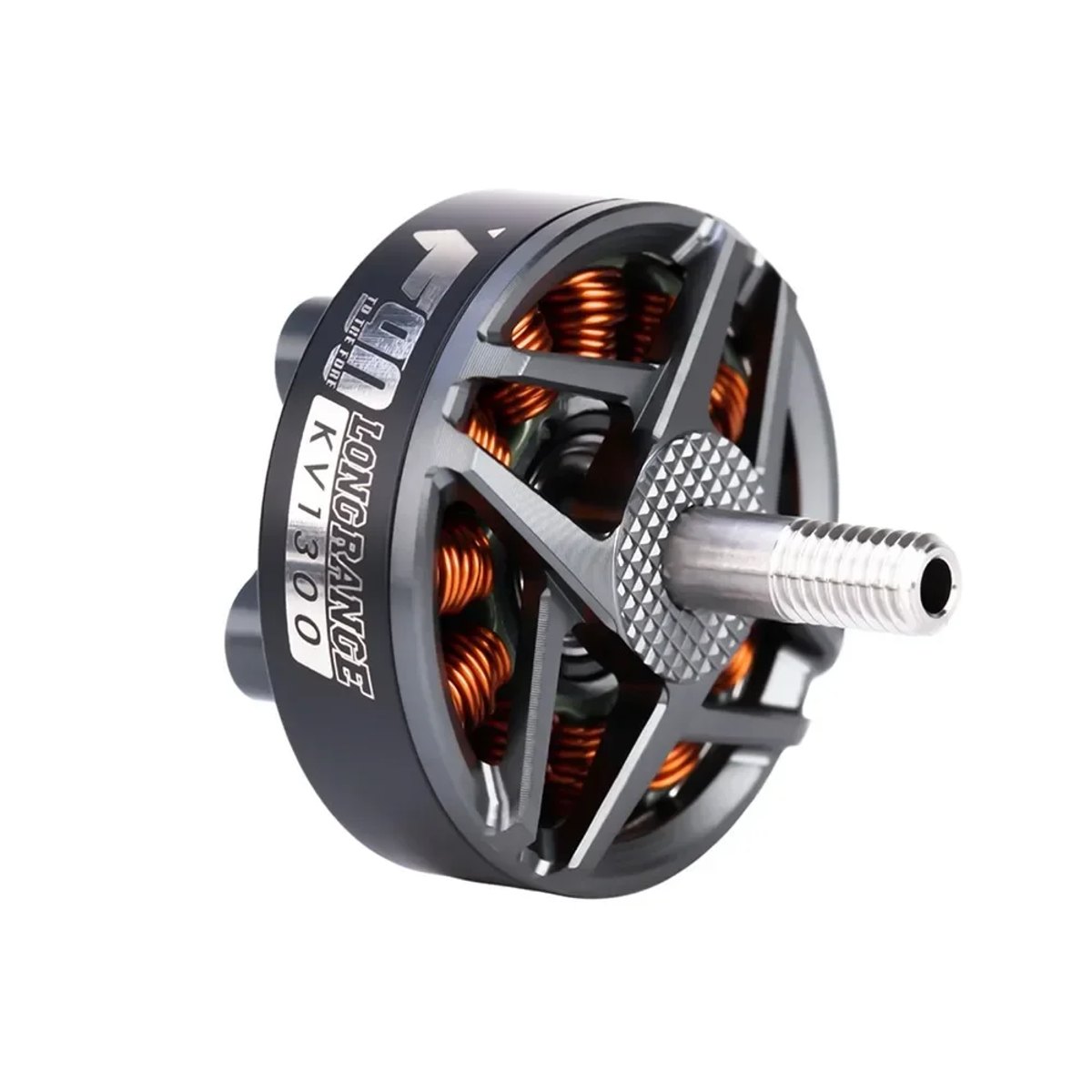

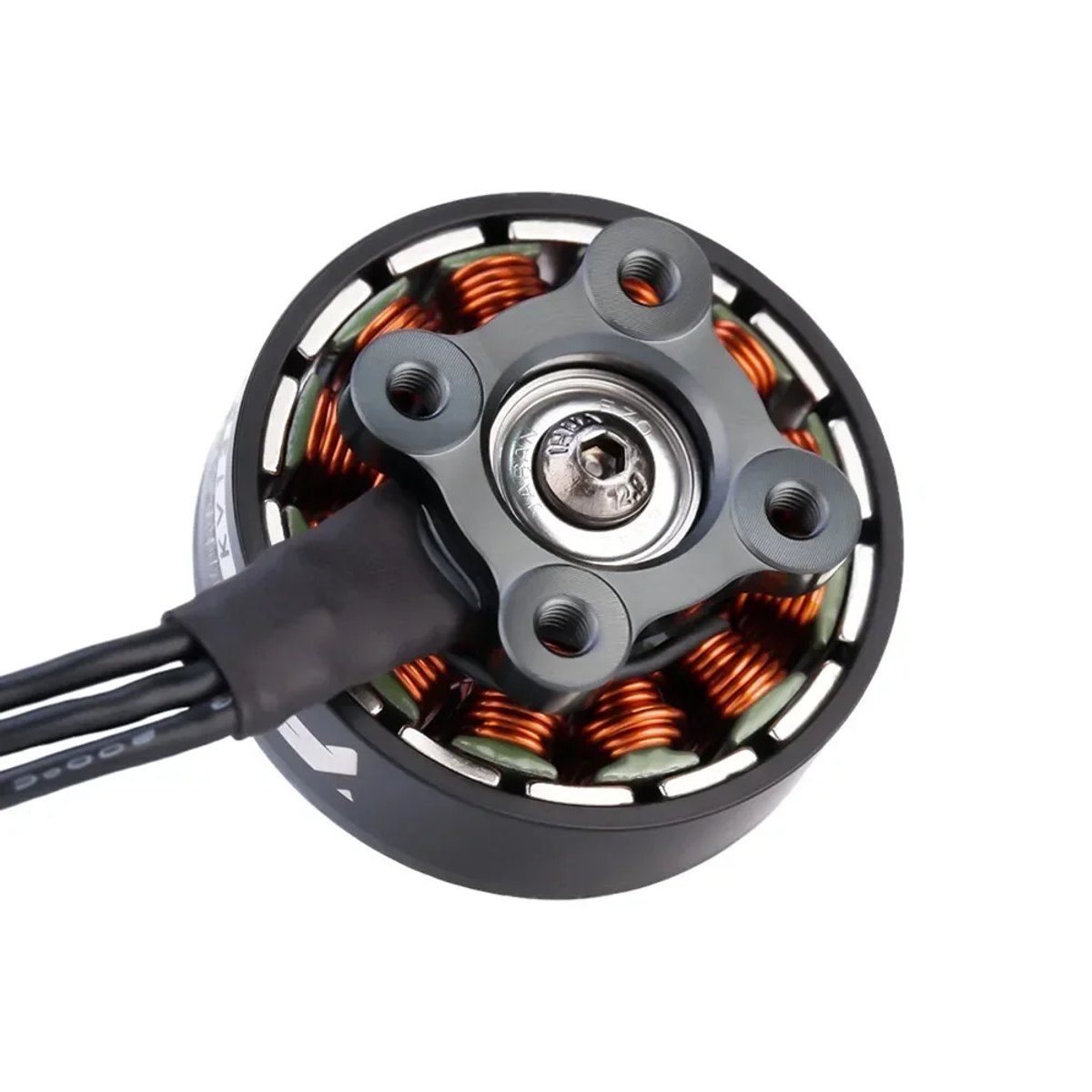

T-Motor's F90 2806.5 in its 1300KV version - the lowest KV in the range, aimed at efficient, longer flights on 5S to 6S. T-Motor built the F90 mainly for X8 cinelifters carrying heavy cameras, and this KV is also used in 7-8 inch long-range builds. It has a 28mm x 6.5mm stator in a 12N14P layout, a 4mm shaft and weighs 46.6g with its lead. Idle current is 0.95A at 10V, internal resistance is 76mΩ, and it is rated for 45.1A and 1059W for 60 seconds. Leads are 20AWG, 230mm long, and it mounts on a 19x19mm M3 pattern. Pick an ESC rated at least for the motor's peak current per channel, and check the real current with your chosen prop, since prop pitch changes it a lot.

Features

  • 1300KV for 5S-6S
  • 2806.5, 12N14P, 4mm shaft
  • 46.6g with cable
  • Up to 45.1A and 1059W (60s)
  • 76mΩ internal resistance
  • 19x19mm M3 mounting
  • For X8 cinelifters and 7-8 inch long range

Specifications

ModelF90 2806.5 Long Range
KV1300KV
Configuration12N14P
Stator28 x 6.5mm
Motor dimensionsØ33.4 x 34.7mm
Shaft diameter4mm
Mounting pattern19 x 19mm, M3
Rated voltage5-6S LiPo
Idle current (10V)0.95A
Internal resistance76mΩ
Peak current (60s)45.1A
Max power (60s)1059W
Lead wire20AWG, 230mm
Weight (with cable)46.6g
ApplicationX8 cinelifter (6-7 inch), 7-8 inch long range

In the box

  • 1 x motor
  • Hardware bag (screws and prop nut)
How long will it fly? Open the flight time calculator →
1
SKUMOT-0008
BrandT-Motor
CategoryMotors
Stock4 units
