SMA Female Flange to 90° MMCX Male Pigtail - FPV Antenna Adapter
₪50
A short adapter cable that connects a video transmitter with an MMCX socket to an antenna with an SMA connector. The SMA end is a female jack on a two-hole flange with screws, so it mounts solidly to the frame - the antenna screws into the frame instead of hanging off the VTX. The MMCX end is a 90° male plug that saves space and takes strain off the socket. Fits, for example, the iFlight BLITZ Whoop 2.5W VTX with an Albatross V2.1 SMA antenna.
Features

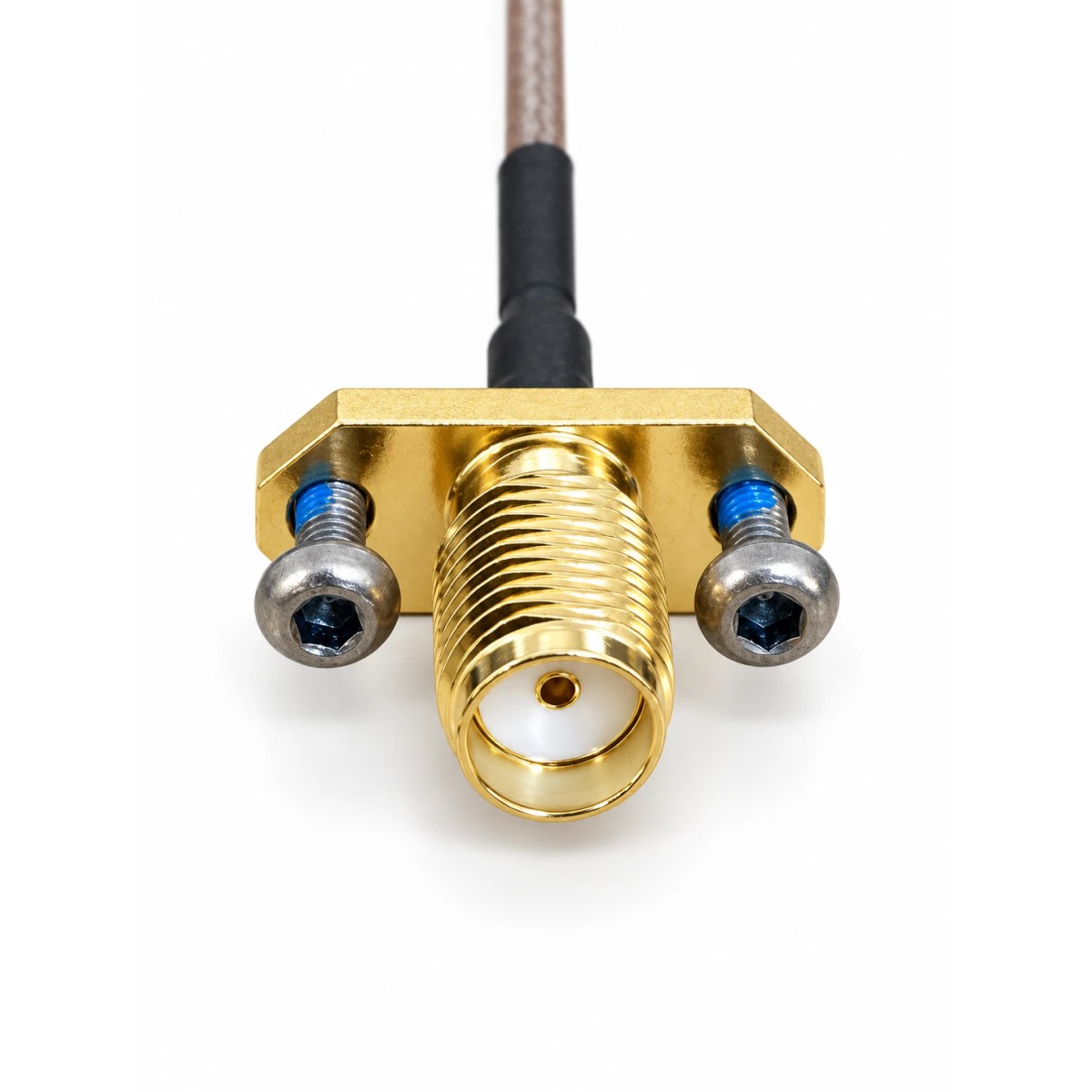

- SMA female (standard polarity, not RP) on a two-hole flange
- 90° right-angle MMCX male
- Mounting screws included
- Gold-plated connectors
- 50-ohm coax with heat-shrink strain relief at both ends
Specifications
Connector ASMA female (jack), standard polarity - fits SMA male antennas
Connector A mountTwo-hole flange panel mount, 2 screws included
Connector BMMCX male (plug), 90° right angle
CableThin 50-ohm braided coax (RG316-type)
PlatingGold
UseMMCX video transmitter to frame-mounted SMA antenna
In the box
- 1 x adapter cable
- 2 x mounting screws (fitted to the flange)
1
SKUFPV-0017
CategoryFPV Gear
Stock5 units
