INNLOI 1755 Carbon Fiber Propeller 17x5.5 - Pair (CW/CCW)
INNLOI

INNLOI 1755 Carbon Fiber Propeller 17x5.5 - Pair (CW/CCW)

₪200

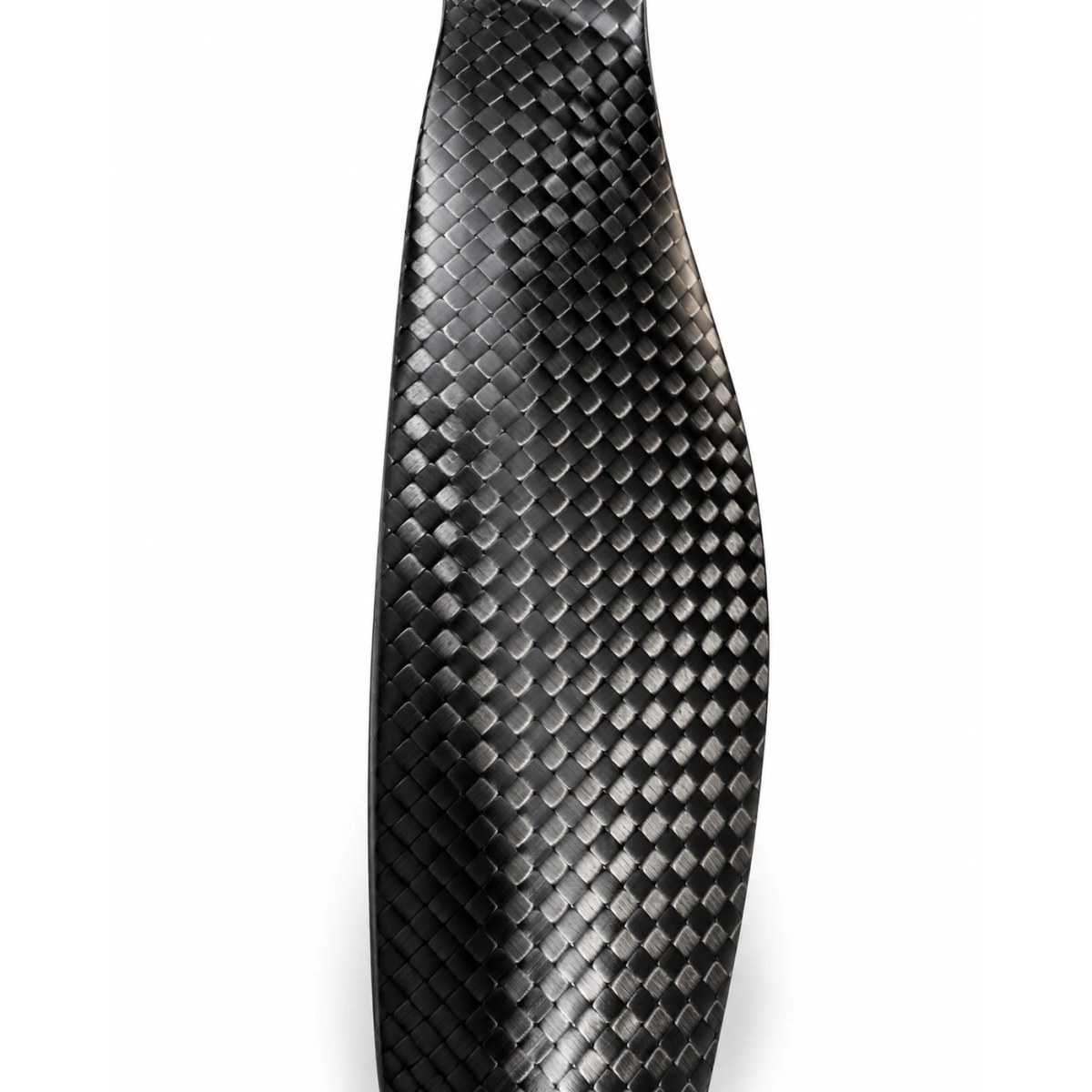

A two-blade INNLOI carbon fiber propeller, 17 inches in diameter with a 5.5-inch pitch, for heavy-lift, aerial-photography and long-range multirotors. Both blades are a single carbon piece, and the price is for a pair - one CW and one CCW - weighing 67g together. It bolts on with screws on a 12mm hole spacing rather than sliding over a centre shaft, so make sure your motor's top has a matching hole pattern. According to the manufacturer's data it is designed for 1-3kg of thrust per motor, for 4310, 5010, 5015 and 5408 motors, and for 680-750mm quad, 920-1000mm hex or 1200-1250mm octo frames. On an X5408 motor at 6S it measured 2482g at 16A with 260KV, up to 3525g at 34A with 360KV. Carbon is stiff and efficient but less forgiving than nylon in a crash, and the edges are sharp - stay clear of the props whenever a battery is connected, and replace any prop with a crack or chipped tip.

Features

  • One pair: CW + CCW, 67g per pair
  • Carbon fiber, two blades in one piece
  • 17 inch diameter, 5.5 inch pitch
  • Bolt-on mount - 12mm hole spacing, no centre bore
  • Recommended thrust 1-3kg per motor
  • For 4310 / 5010 / 5015 / 5408 motors
  • For 680-750mm quad frames and larger

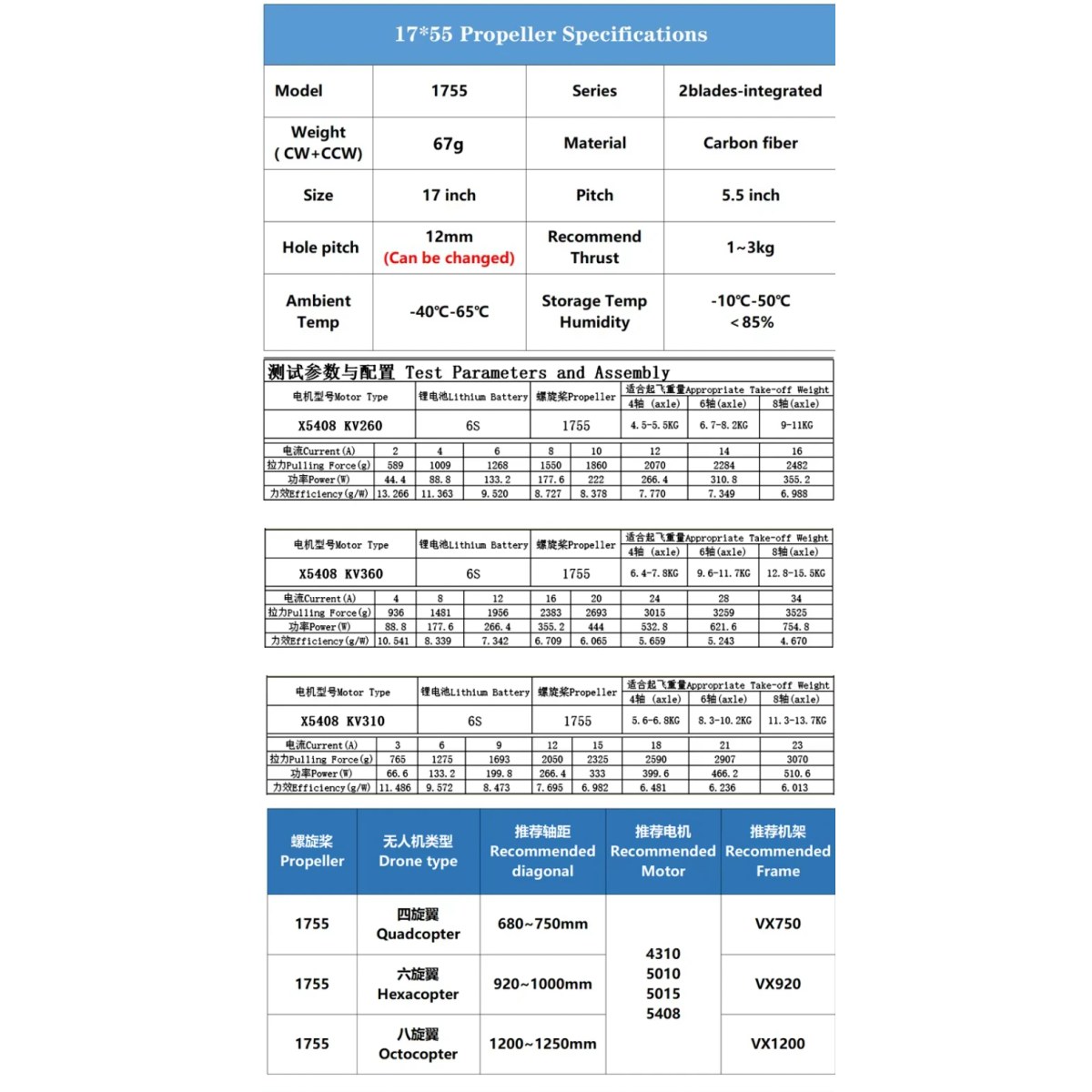

Specifications

ModelINNLOI 1755
Diameter17 inch
Pitch5.5 inch
Blades2 (one-piece)
MaterialCarbon fiber
Weight (CW + CCW)67g
MountingBolt-on, 12mm hole pitch (no centre bore)
Recommended thrust1-3kg per motor
Recommended motors4310, 5010, 5015, 5408
Recommended frame680-750mm quad, 920-1000mm hex, 1200-1250mm octo
Thrust, X5408 260KV 6S2482g at 16A (355W)
Thrust, X5408 310KV 6S3070g at 23A (511W)
Thrust, X5408 360KV 6S3525g at 34A (755W)
Operating temperature-40 to 65°C
Storage-10 to 50°C, humidity below 85%

In the box

  • 1 pair of propellers: 1 x CW, 1 x CCW
How long will it fly? Open the flight time calculator →
