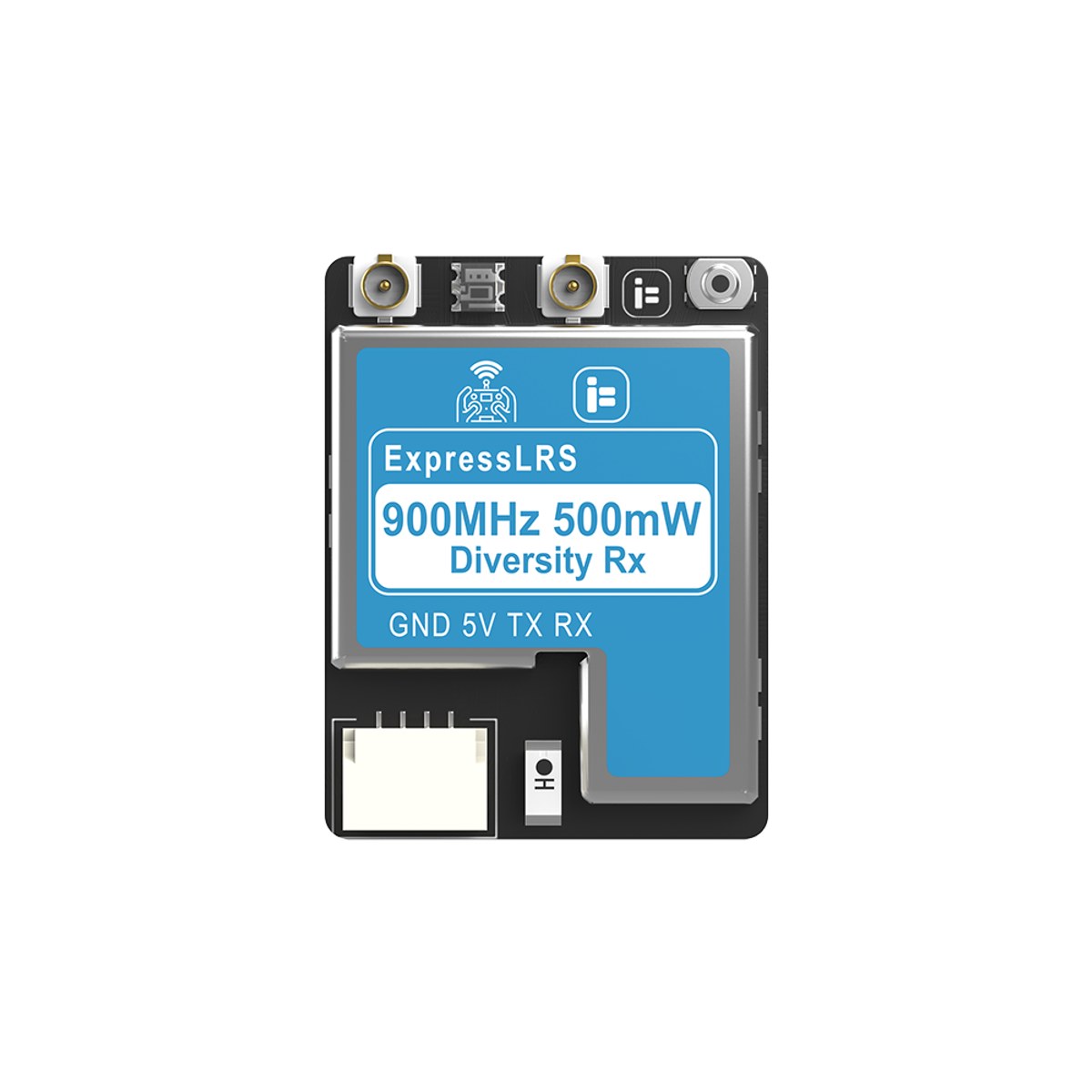

iFlight ExpressLRS ELRS 868/900MHz True Diversity Receiver 500mW + 2x 70mm Antenna

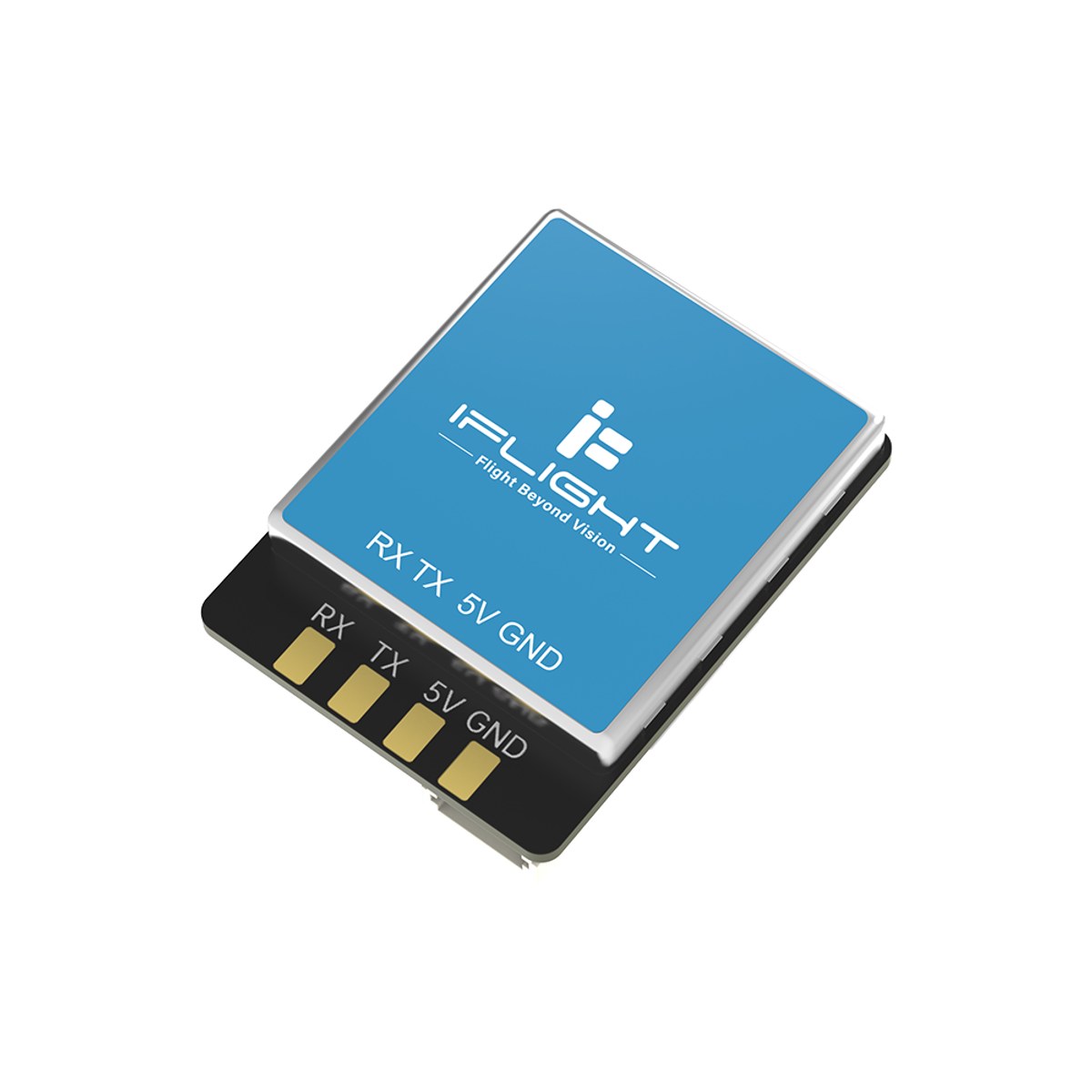

An iFlight ExpressLRS receiver for the 868/900MHz band, with two antennas in true diversity and Gemini mode support. It runs on an ESP32-Pico D4 and has a temperature-compensated TCXO crystal for a stable frequency, plus a shielding cover against interference. Telemetry output is 100-500mW (20-27dBm). It connects to the flight controller with four wires (GND, 5V, TX, RX) over CRSF, weighs 4.2g and measures 24.3x18.5x6.5mm. It is meant for long-range builds that pair it with an ELRS transmitter on the same band. Tips: in ExpressLRS firmware the band (868 EU or 915 FCC) is set when you flash, and it has to match the transmitter. The firmware target is iFlight 900MHz 500mW Diversity RX, and the Lua script shows up as iF 900 500mW GRX. iFlight recommend a 200Hz packet rate for this receiver. Point the two antennas in different directions, and keep them away from carbon plates and power wires.
Features
- True diversity - two antennas for steadier reception
- Gemini mode support (needs a Gemini-capable TX)
- Telemetry up to 500mW (20-27dBm)
- TCXO crystal - lower packet loss, stable frequency
- Integrated shielding cover against interference
- 868MHz (EU) / 900MHz (FCC)
- CRSF protocol
Specifications

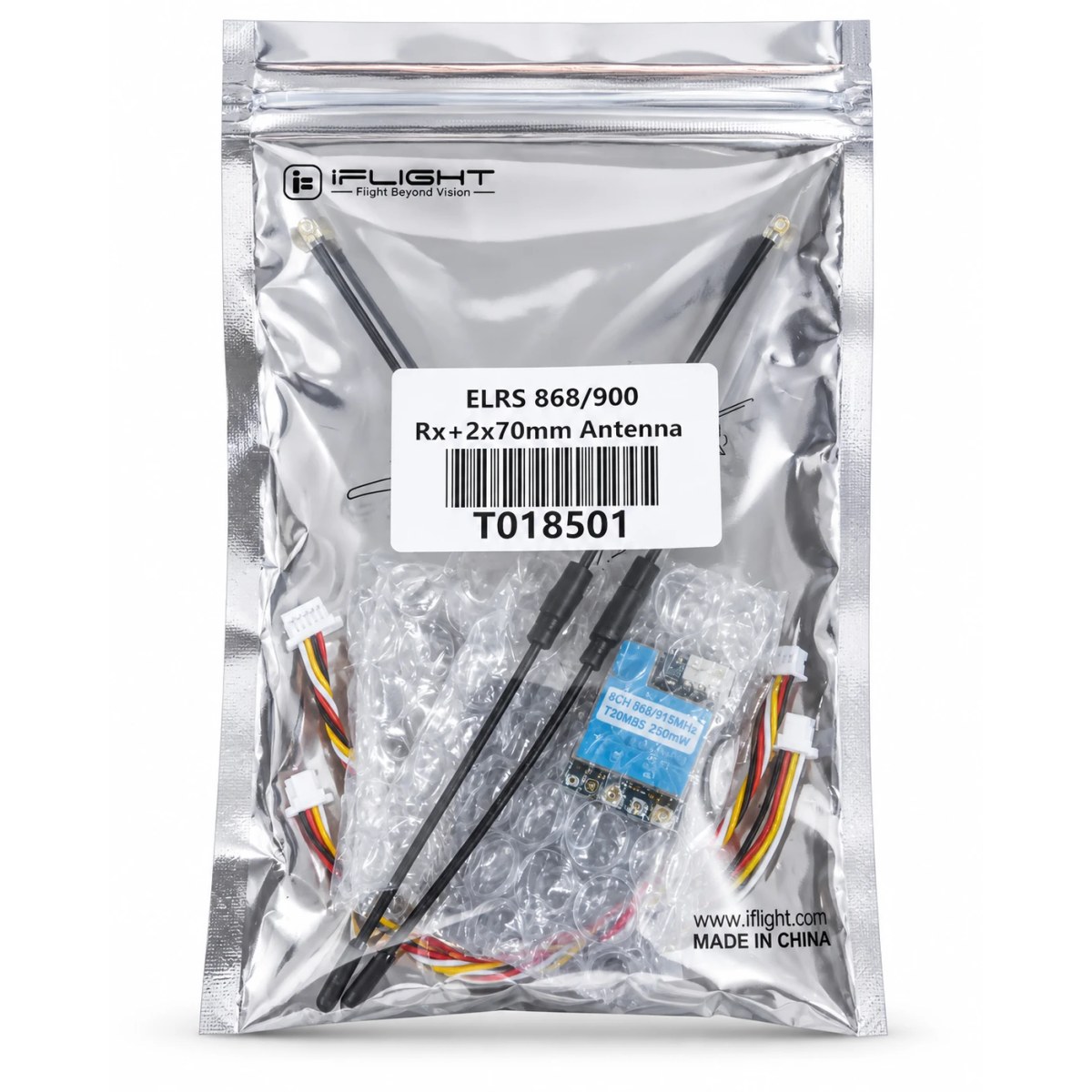

In the box
- 1 x ExpressLRS Diversity receiver
- 2 x 868/900MHz 70mm antenna
