Axisflying Argus Pro 100A 8S ESC

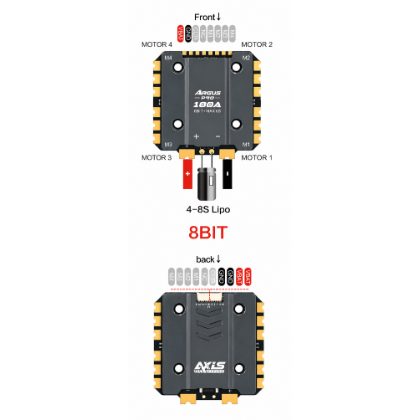

A 4-in-1 ESC from Axisflying's Argus Pro line for 4S to 8S, rated 100A continuous and 110A burst. Axisflying aim it at 13-15 inch long-range, cinematic and heavy-lift drones. This is the 8-bit version running Bluejay. It has no serial ESC telemetry and no current sensor; both are only on the 32-bit version. Bluejay itself supports bidirectional DShot, so you can still run RPM filtering in Betaflight. The board sits in a CNC aluminum housing that spreads heat and protects the components. It has over-current, over-temperature and over/under-voltage protection, and no BEC. It measures 57x56x7mm, weighs 41±2g and mounts on 30.5x30.5mm. The box holds an XT90 power cable, a flight-controller cable set, a capacitor, and M3 screws with damping grommets. Tips: solder the capacitor close to the input pads. There is no current sensor, so if you want mAh readings you need an external current meter.
Features
- 100A continuous, 110A burst
- 4S to 8S
- Bluejay (8-bit) firmware with bidirectional DShot
- No serial telemetry or current sensor on this version
- CNC aluminum housing for heat dissipation
- Over-current, over-temperature and over/under-voltage protection
- 30.5x30.5mm mounting, XT90 cable included
Specifications
In the box
- 1x Argus Pro 100A ESC
- 1x XT90 power cable
- 1x set of flight-controller cables (analog / HD / VTX / RX)
- 1x capacitor
- 4x M3 screws and damping grommets
