63V 2200uF Electrolytic Capacitor Changxin
₪17

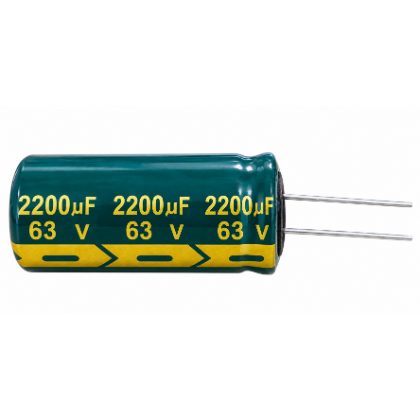

A Changxin aluminum electrolytic capacitor, 2200uF and 63V, low-ESR type, rated -40 to +105°C as marked on the sleeve. It is meant for 10S and 12S builds: a fully charged 12S pack reaches 50.4V, which puts a 50V capacitor below the working voltage and rules it out, while 63V leaves about 12V of margin. It also works on 8S and 10S with even more margin. Solder it as close as possible to the ESC battery pads with short legs, and watch the polarity: the stripe on the sleeve marks negative. If you want more margin on 12S, or fly 14S, choose a 100V capacitor. 2 pieces per pack.
Features
- 2200uF
- 63V rated, suits 12S
- Low ESR
- -40 to +105°C rated
- 2 pieces per pack
Specifications
Capacitance2200uF
Voltage63V
Tolerance±20%
TypeAluminum electrolytic, radial, low ESR
Operating temperature-40C to +105C (sleeve marking)
Brand markingChangxin
Pack2 pcs
In the box
- 2 capacitors
